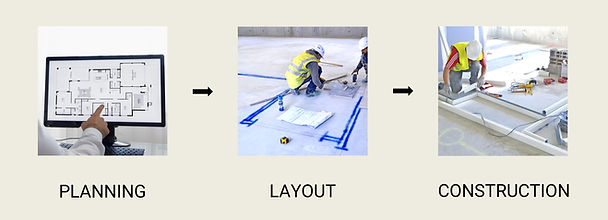

Construction layout is the process of translating design plans into physical markers on a construction site, guiding the accurate placement of structural elements and systems. This process is crucial for ensuring that the construction aligns with the intended design, minimizing errors, and preventing costly rework.
Manual Layout for Drywall and MEP
Drywall Layout
Drywall layout involves planning and marking the installation of interior walls and ceilings using drywall panels. It requires careful attention to detail to ensure that all components are aligned properly. The main elements of drywall layout include:
Framing: Marking the placement of tracks, studs and other structural supports to ensure the drywall has a solid foundation.
Drywall Finish: Indicating where the drywall finishes or terminates, ensuring a smooth, uniform look throughout the space.
Door Rough Openings: Marking the exact location and size of door openings to ensure proper door installation.
Soffits: Marking the placement of soffits (the underside of any overhanging elements), which are crucial for accurate drywall fitting.
These elements form the foundation of a successful drywall layout, ensuring that walls and ceilings are installed correctly and aligned with the design plans.
MEP Layout
MEP layout refers to the precise positioning of mechanical, electrical, and plumbing systems within a building. This layout ensures that all systems are routed correctly and installed in the proper locations. Key components of MEP layout include:

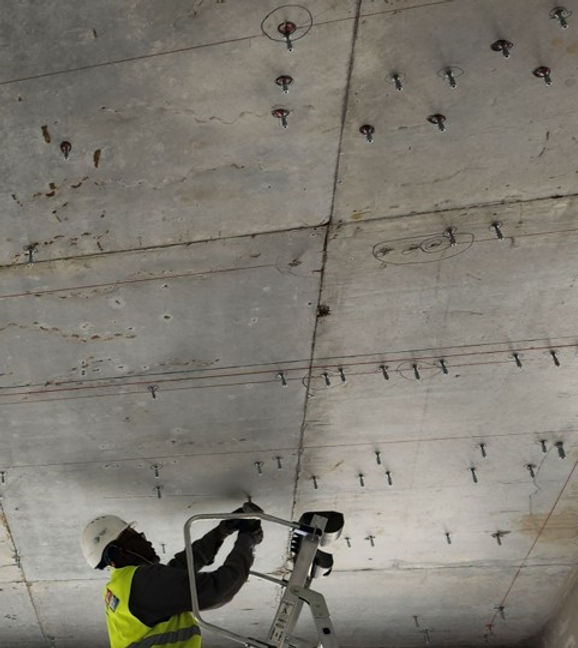

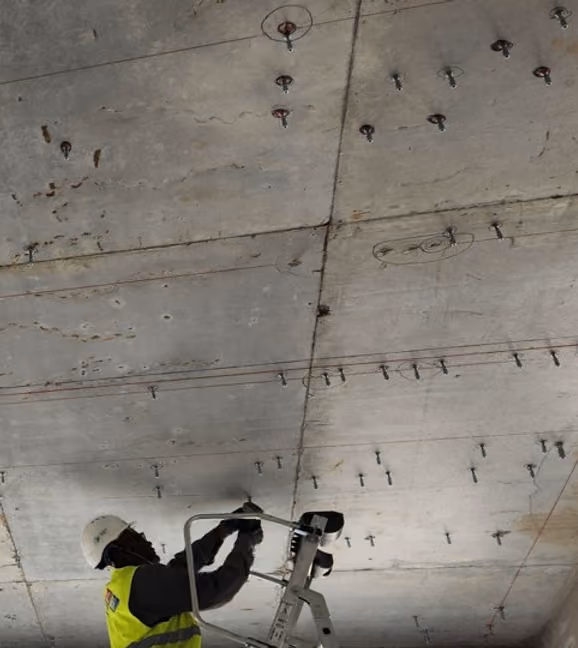

Hanger Point Locations: Marking the locations where supports or hangers will be installed to hold ductwork, pipes, and electrical conduits in place.
Ductwork Runs: Marking the full length and path of HVAC ductwork, ensuring that it runs efficiently from air handling units to vents and diffusers.
Wall / Floor Penetrations: Identifying the locations where pipes, ducts, or electrical conduits will pass through walls, ensuring the structural integrity of the walls is maintained.
Piping and Fire Sprinklers: Marking the exact route for plumbing pipes and fire sprinkler systems, ensuring compliance with local codes and regulations.
Electrical Devices: Identifying the locations for electrical outlets, switches, and other devices, ensuring they are placed according to the design specifications.
These elements form the foundation of a successful MEP layout, ensuring the proper installation of systems that are critical to the building's functionality.
Challenges with Manual Layout
1. Time-Consuming Process

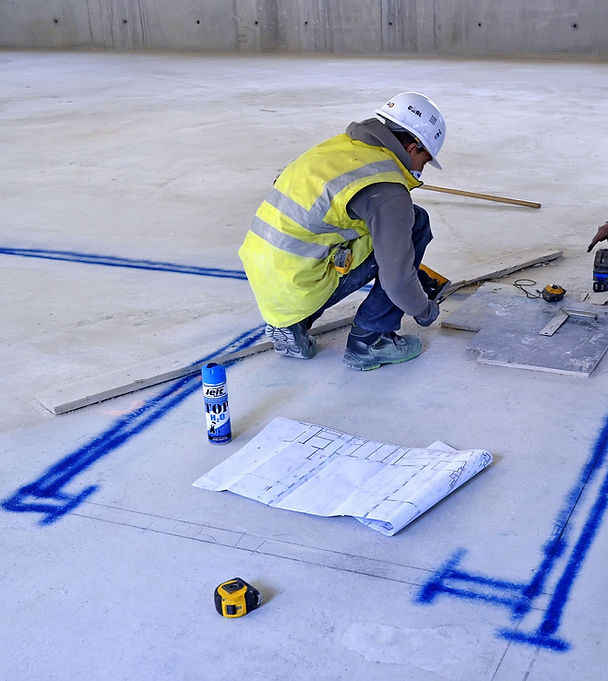

Manual layout involves measuring, marking, and double-checking lines using tape measures, chalk lines, plumb bobs, and string. This process is slow and labor-intensive, requiring multiple workers to ensure accuracy.
Example: Laying out MEP points across a large commercial project manually could take several days, while digital tools can cut this down to hours.
2. High Risk of Human Error
Mistakes in manual layout are common due to miscalculations, measurement discrepancies, and interpretation errors. Even small errors can compound into major problems during construction.
Example: A drywall layout error of just 1 inch could misalign an entire wall, causing misfits in doorways, electrical installations, and plumbing.
3. Increased Rework & Waste
Errors in manual layout lead to costly rework. If walls, MEP components, or structural elements are installed incorrectly, they must be adjusted or redone, wasting materials and labor.
4. Coordination Challenges Between Trades
Multiple teams (drywall, electrical, plumbing, HVAC) rely on layout accuracy. If one trade misinterprets the layout, it can create conflicts that delay the entire project.
5. Labor Shortages & Training Gaps
Manual layout requires skilled workers who understand blueprints and measurements. However, finding and training these workers is becoming increasingly difficult in today’s labor market.
Why Digital Layout is the Future
1. Improved Speed & Efficiency
Digital layout tools significantly reduce the time required for layout by automating measurements and markings.
2. Higher Accuracy & Error Reduction
Digital tools eliminate human measurement errors and improve precision, ensuring that layout points are exactly where they need to be.
3. Reduced Rework & Material Waste
With accurate digital layout, the risk of mistakes is minimized, reducing the need for costly rework and material wastage.
4. Seamless Coordination Between Trades
BIM-integrated digital layout systems ensure that different trades work from the same data, preventing conflicts between drywall, MEP, and structural installations.
5. Simplified Training & Adoption
Digital layout tools reduce reliance on highly skilled workers. Instead of interpreting complex blueprints, workers simply follow laser projections or automated layouts.
Advancements in Digital Layout Tools
Robotic Total Stations (RTS)
RTS are electronic/optical instruments that integrate electronic distance measurement and angle measurement capabilities. They allow for one-person operation by enabling the user to control the instrument remotely, thus improving efficiency and accuracy.
Leading manufacturers as Trimble, Leica, Topcon offer various RTS solutions for single point layout.

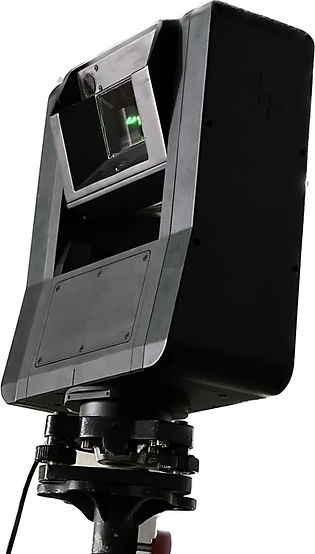

LightYX's BeamerOne™: Revolutionizing Drywall and MEP Layout

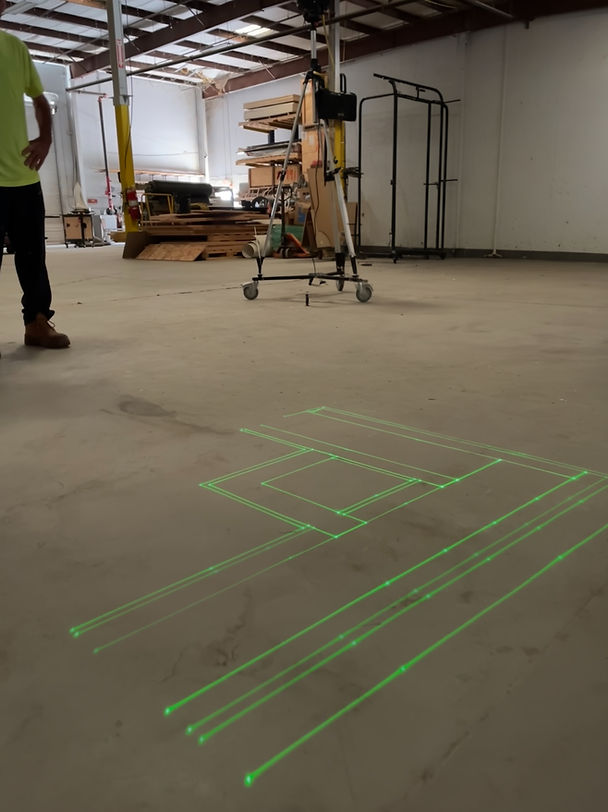

LightYX's BeamerOne™ represents a significant advancement in digital layout technology, particularly for drywall and MEP installations. This innovative system projects comprehensive digital drawings directly onto construction surfaces using projected laser technology, allowing workers to follow precise guidelines without manual measurements.
Benefits of BeamerOne™ for Drywall Layout:
Enhanced Speed and Accuracy: The system can layout up to 2,000 linear feet of wall or 20,000 square feet of floor area per day, achieving up to 10 times more productivity than traditional methods.
Error Reduction: By projecting exact layouts onto surfaces, BeamerOne™ minimizes errors and reduces the need for rework by up to 80%.
Simplified Process: Workers can easily follow the laser projections, eliminating the complexities of interpreting construction plans and reducing the required skill level for accurate installations.
Benefits of BeamerOne™ for MEP Layout:
Increased Productivity: The system enables the layout of up to 2,000 linear feet of line or 2,000 points per day on floors or ceilings, significantly boosting productivity.
Conflict Identification: By utilizing coordinated digital models, BeamerOne™ helps identify potential conflicts before installation, reducing rework and associated costs.
Versatility: The system allows for layout on various surfaces, including floors, ceilings, and walls, accommodating the complex requirements of MEP installations.
Conclusion
The integration of advanced digital tools like Robotic Total Stations and LightYX's BeamerOne™ is transforming construction layout processes. These technologies enhance accuracy, efficiency, and collaboration among trades, leading to more successful project outcomes. Embracing such innovations is essential for construction professionals aiming to improve productivity and reduce errors in their projects.
